Pinion Shaft and Hollow Shaft, Assembly Overview

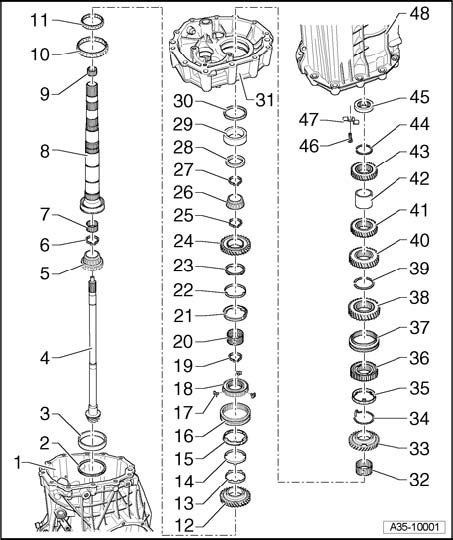

Pinion shaft and hollow shaft, assembly overview - 6 Spd. Manual Transmission 02X All Wheel Drive
Note:
^ When installing new gear wheels or the final drive set consult technical data.
^ Observe technical data when installing new gear wheels
^ Lubricate all needle bearings on hollow shaft with gear oil before installing.
^ Adjustment work is required when replacing the parts marked with 1).
1 - Transmission housing 1)
2 - Shim "S3"
^ Table of adjustments
3 - Double tapered roller bearing outer race 1)
^ Pulling out
^ Pressing in and
4 - Pinion shaft 1)
^ Is mated with ring gear, always replace together as a set
^ Adjusting ring gear and pinion shaft
5 - Double tapered roller bearing inner race 1)
^ Will be damaged during removal
^ Replace
^ Pressing off
^ Pressing on
6 - Circlip
^ Redetermine thickness if double tapered roller bearing is replaced
7 - Large needle bearing
^ For pinion shaft in hollow shaft
^ Lubricate with gear oil
8 - Hollow shaft
^ Disassembling and assembling
9 - Small needle bearing
^ For pinion shaft in hollow shaft
^ Lubricate with gear oil
10 - Large needle bearing for 1st gear
11 - Small needle bearing for 1st gear
12 - 1st speed selector gear
^ Check axial clearance after installing using feeler gauge (0.20 to 0.50 mm)
13 - Inner ring for 1st gear
^ Installation position
^ Checking for wear
^ Replace if scored or if there are visible traces of wear
14 - Intermediate ring for 1st gear
^ Installation position
^ Checking for wear
15 - Synchro-ring for 1st gear
^ Installation position
^ Checking for wear
^ Replace if scored or if there are visible traces of wear
16 - Locking collar for 1st and 2nd gear
^ Mark position in relation to synchronizing hub prior to removing
^ Assembling locking collar/synchronizing hub
17 - Locking piece
^ Install locking pieces (3x)
18 - Synchronizing hub for 1st and 2nd gear
^ Installation position: high inside collar faces 2nd speed selector gear
^ Pressing off
^ Pressing on
^ Assembling locking collar/synchronizing hub
19 - Circlip
^ Mark
^ Installation position, - item 1 -
^ Re-determine thickness when replacing 1st and 2nd gear synchronizing hub or hollow shaft
20 - Needle bearing
^ For 2nd gear
21 - Synchro-ring for 2nd gear
^ Installation position
^ Checking for wear
^ Replace if scored or if there are visible traces of wear
22 - Intermediate ring for 2nd gear
^ Installation position
^ Checking for wear
23 - Inner ring for 2nd gear
^ Installation position
^ Checking for wear
^ Replace if scored or if there are visible traces of wear
24 - 2nd speed selector gear
^ Check axial clearance after installing using feeler gauge (0.20 to 0.50 mm)
25 - Circlip
^ Mark
^ Installation position, - item 2 -
26 - Tapered roller bearing inner race1)
^ Pressing off
^ Pressing on
27 - Circlip
^ Mark
^ Installation position, - item 3 -
28 - Thrust washer
^ For reverse selector gear
^ Pressing off
^ Pressing on
29 - Tapered roller bearing outer race 1)
^ Pulling out
^ Pressing in
30 - Shim "S4"
^ Table of adjustments
31 - Bearing housing 1)
32 - Needle bearing
^ For reverse selector gear
33 - Reverse selector gear
^ Check axial clearance after installing using feeler gauge (0.20 to 0.50 mm)
34 - Spring
^ Insert into reverse selector gear
^ Allocation of spring to selector gear
35 - Synchronizing ring for reverse gear
^ Checking for wear
36 - Reverse gear synchronizing hub
^ Installation position: high inside collar faces 3rd gear wheel
37 - Reverse gear locking collar
^ Mark position in relation to synchronizing hub prior to removing
^ Installation position: taper faces reverse gear synchro-ring
38 - 3rd gear wheel
^ Installation position: machined side faces reverse gear synchronizing hub
39 - Circlip
^ Mark
^ Installation position, - item 4 -
^ Re-determine thickness when replacing 3rd gear wheel, reverse gear synchronizing hub or hollow shaft
40 - 4th gear wheel
^ Installation position: high inside collar faces 5th gear wheel
41 - 5th gear wheel
^ Installation position: high inside collar faces 4th gear wheel
42 - Spacer sleeve
43 - 6th gear wheel
44 - Circlip
^ Mark
^ Installation position, - item 5 -
^ Re-determine thickness when replacing gear wheels for 4th to 6th gear, the spacer sleeve or the hollow shaft
45 - Needle bearing
^ Bearing for hollow shaft in transmission cover
46 - Multi-point socket head bolt, 24 Nm
47 - Retaining plate
48 - Transmission cover
Inserting spring in selector gear
The bent end of spring - arrow - must be hooked into hole in selector gear.
Checking synchro-ring for wear
- Press synchro-ring into locking collar and measure gap - a - at positions - A -, - B - and - C - using feeler gauge.
- Add measured values and divide by 3.
The determined value should not exceed 0.45 mm.
