Ball Bearing For Input Shaft, Transmission Cover, Bearing Housing and Selector Shaft, Removing and Installing

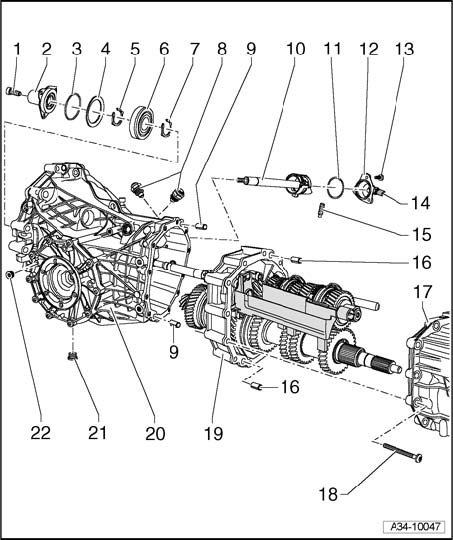

Ball bearing for input shaft, transmission cover, bearing housing and selector shaft, removing and installing - 6 Spd. Manual Transmission 02X All Wheel Drive





1 - TORX bolt, 35 Nm

^ 3x
^ Apply locking fluid AMV 185 101 A1 when installing

2 - Guide sleeve

^ With seal

3 - O-ring

^ Always replace

4 - Dished spring
5 - Circlip

^ Note thickness
^ Re-determining thickness

6 - Ball bearing

7 - Circlip

^ Note thickness
^ Re-determining thickness

8 - Locking bolt, 45 Nm

^ 2x
^ Apply locking fluid AMV185101A1 when installing

9 - Dowel sleeve

^ 2x
^ Insert in transmission housing
^ Remove and install with drift 3121

10 - Selector shaft with selector cylinder

11 - O-ring

^ For selector shaft cover
^ Always replace
^ Lubricate with gear oil

12 - Cover for selector shaft

^ With back-up light switch F4

13 - Bolt - 24 Nm -

^ 3x
^ Apply locking fluid AMV185101A1 when installing

14 - Back-up light switch F4, 20 Nm
15 - Pin

^ For selector shaft stop
^ Insert in transmission housing
^ Installation position: groove on threaded pin points toward selector shaft cover

16 - Dowel sleeve

^ 2x
^ Insert in bearing housing
^ Remove and install with drift 3121

17 - Transmission cover
18 - Bolt, 35 Nm plus an additional 90 degrees 1/4 turn
^ 12 x
19 - Bearing housing
20 - Transmission housing

^ With differential and flange shafts
^ Servicing transmission housing

21 - Oil drain plug, 45 Nm
22 - Oil filler plug, 45 Nm
