Location of Shims

Location of Shims

• Adjustment overview when replacing individual components of differential. Refer to => [ Adjustment Overview ] Adjustment Overview.

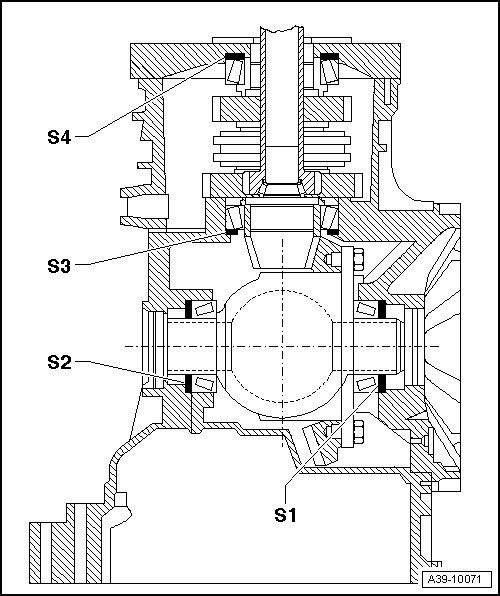

S1 - Ring gear adjustment shim in final drive cover

S2 - Shim for ring gear in transmission housing

S3 - Shim for pinion in transmission housing

S4 - Shim for pinion inside the bearing housing
