Calculating Ratio "I"

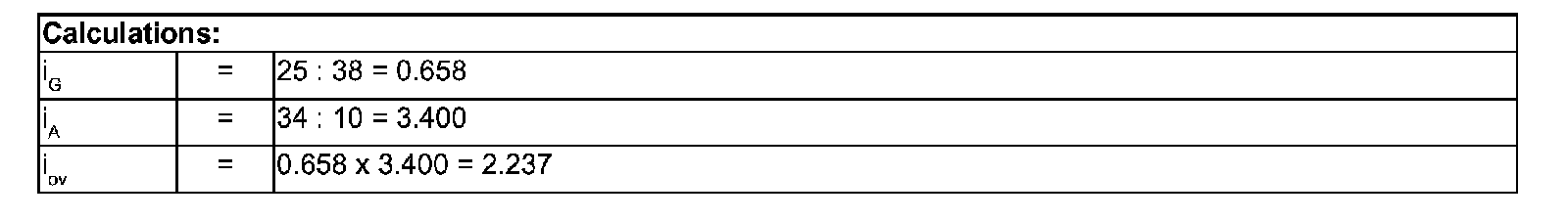

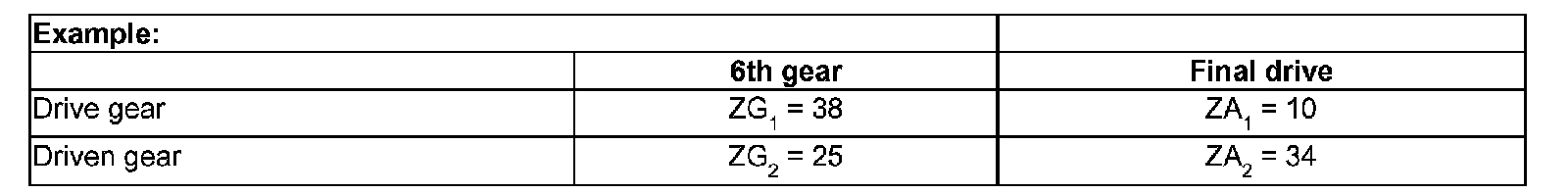

Calculating ratio "i" - 6 Spd. Manual Transmission 02X All Wheel Drive

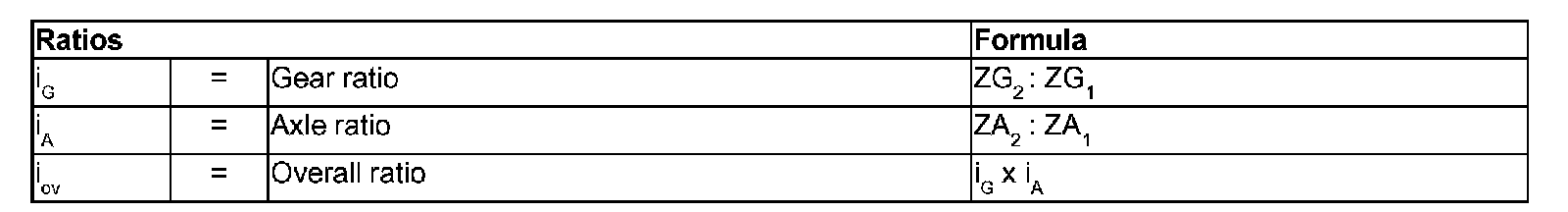

Transmission ratio
