Transmission Identification

Transmission identification - 6 Spd. Manual Transmission 02X All Wheel Drive

The 6-speed manual transmission 02X all wheel drive is used on the A4 2002 > in conjunction with the, 2.0 1iter and 3.2 liter engines.





Location on transmission

^ Code letters and date of manufacture - arrow 1 - or - arrow 3
^ Manual transmission 02X - arrow 2

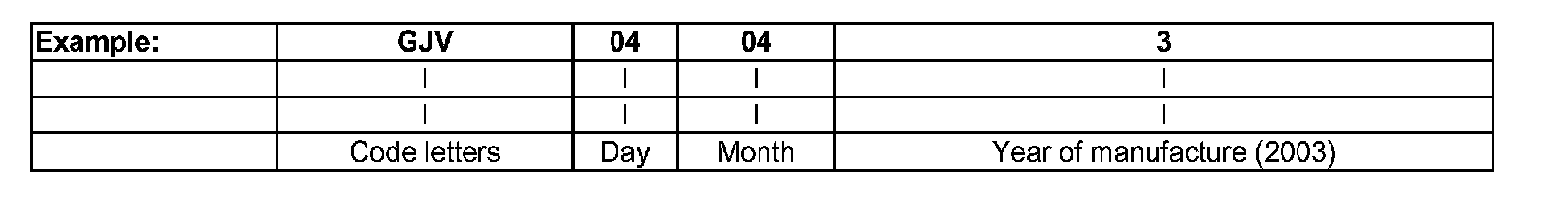

Code letters and date of manufacture of transmission - arrow 1 -





Additional data are production-related

Note:
^ The code letters for the transmission are also given on the vehicle data stickers.





Manual transmission 02X - arrow 2 -
