Code Letters, Allocation, Transmission Ratios, Capacities



Code letters, allocation, transmission ratios, capacities - 6 Spd. Manual Transmission 02X All Wheel Drive

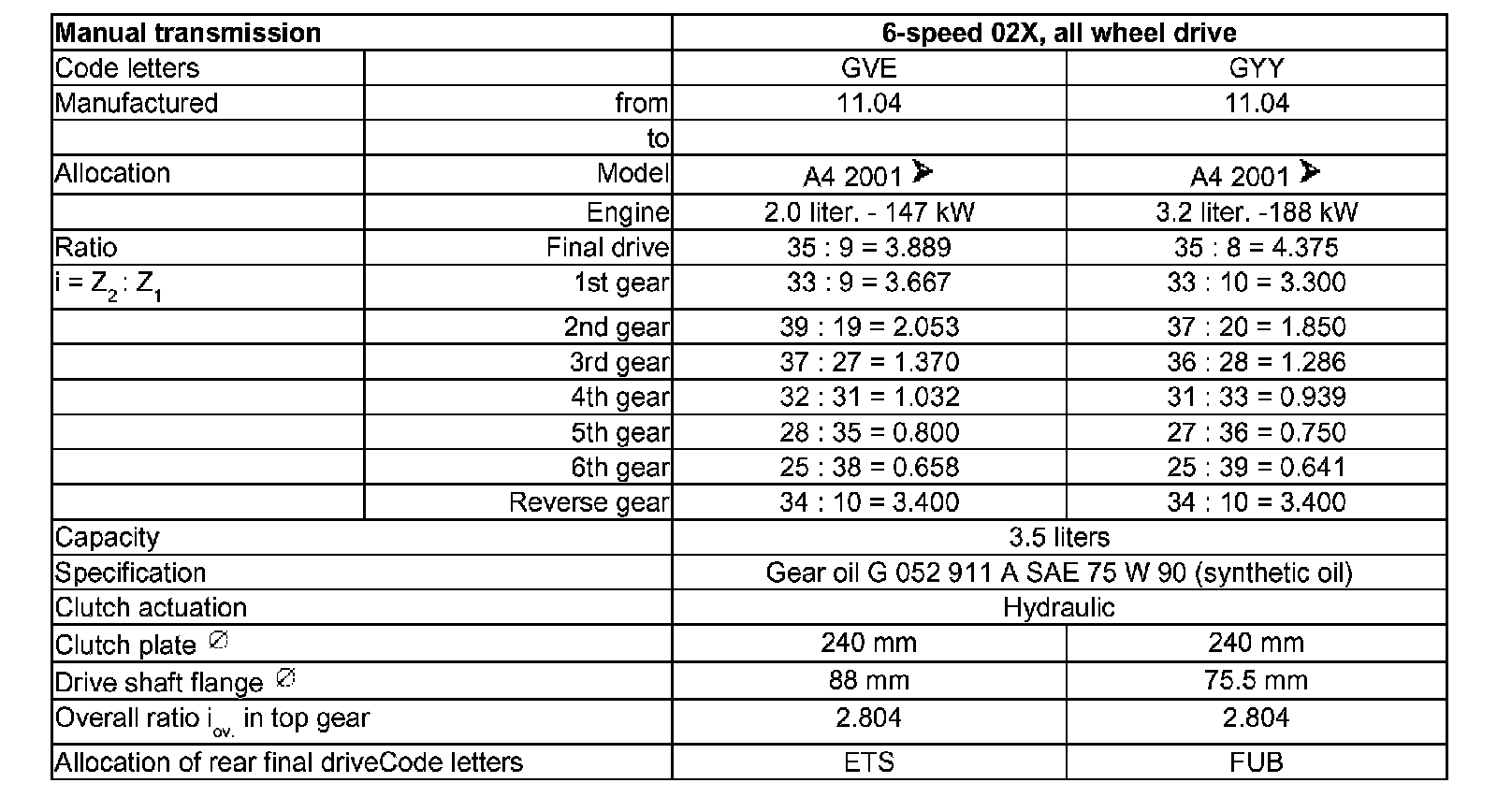

Code Letters, Allocation, Transmission Ratios & Capacities (Part 1):




Code Letters, Allocation, Transmission Ratios & Capacities (Part 2):
