A4 Quattro Wagon (8ED) L4-2.0L Turbo (BWT)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
>>
Main Fuse, Connector Stations, Relay/Fuse Panels
Main Fuse, Connector Stations, Relay/Fuse Panels

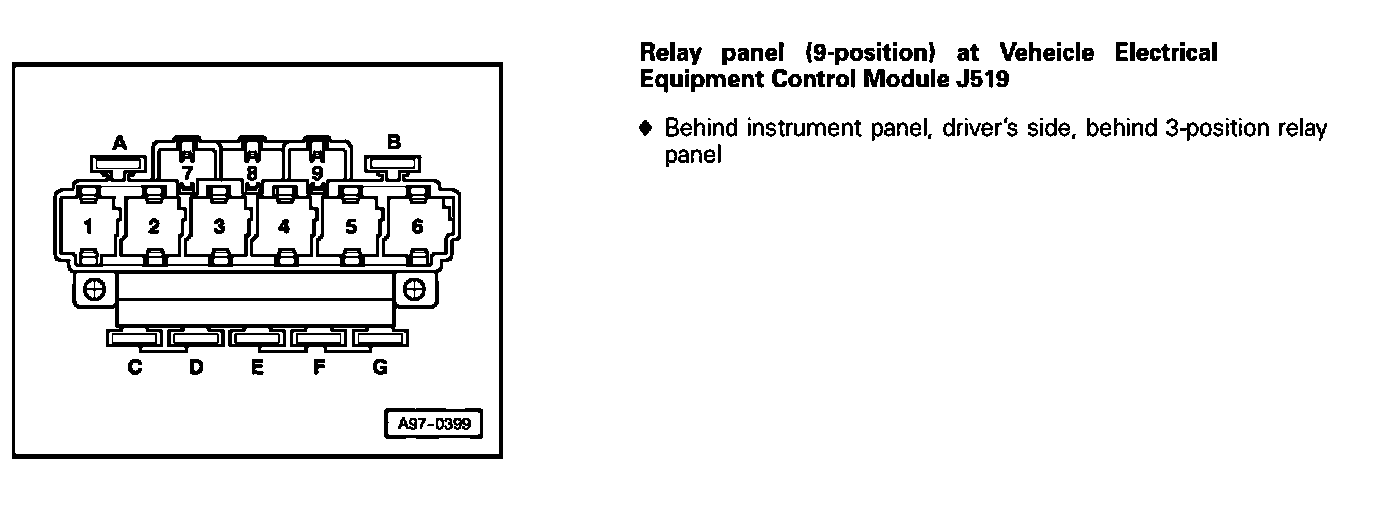

Relay Panel (9-position) At Vehicle Electrical Equipment Control Module J519:

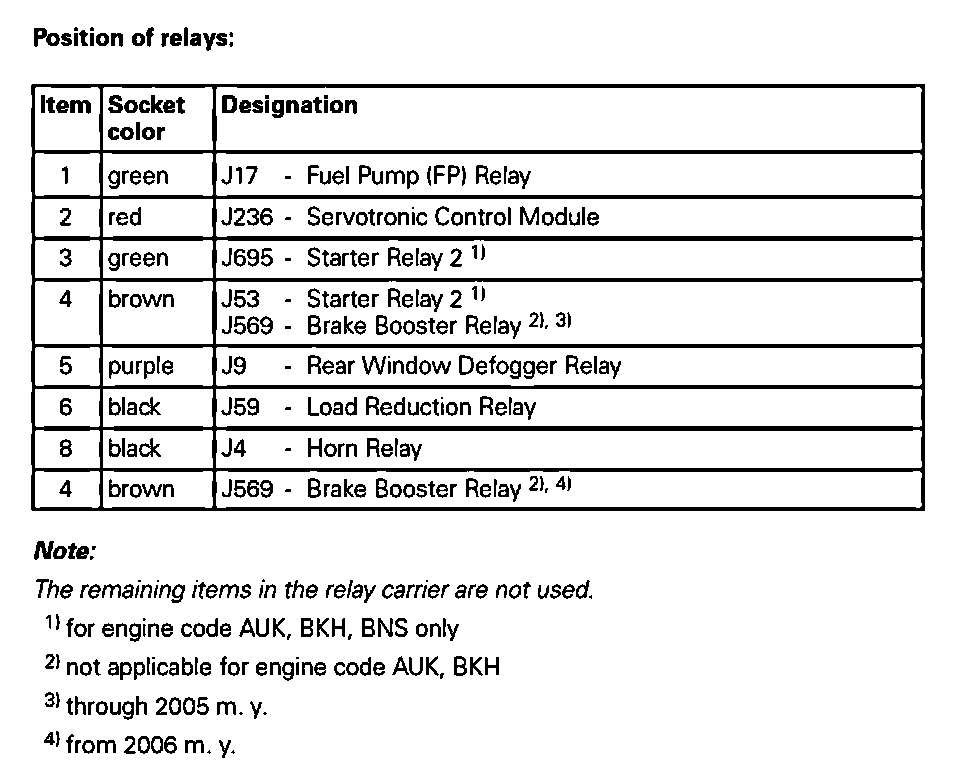

Position Of Relays:
