System Specifications

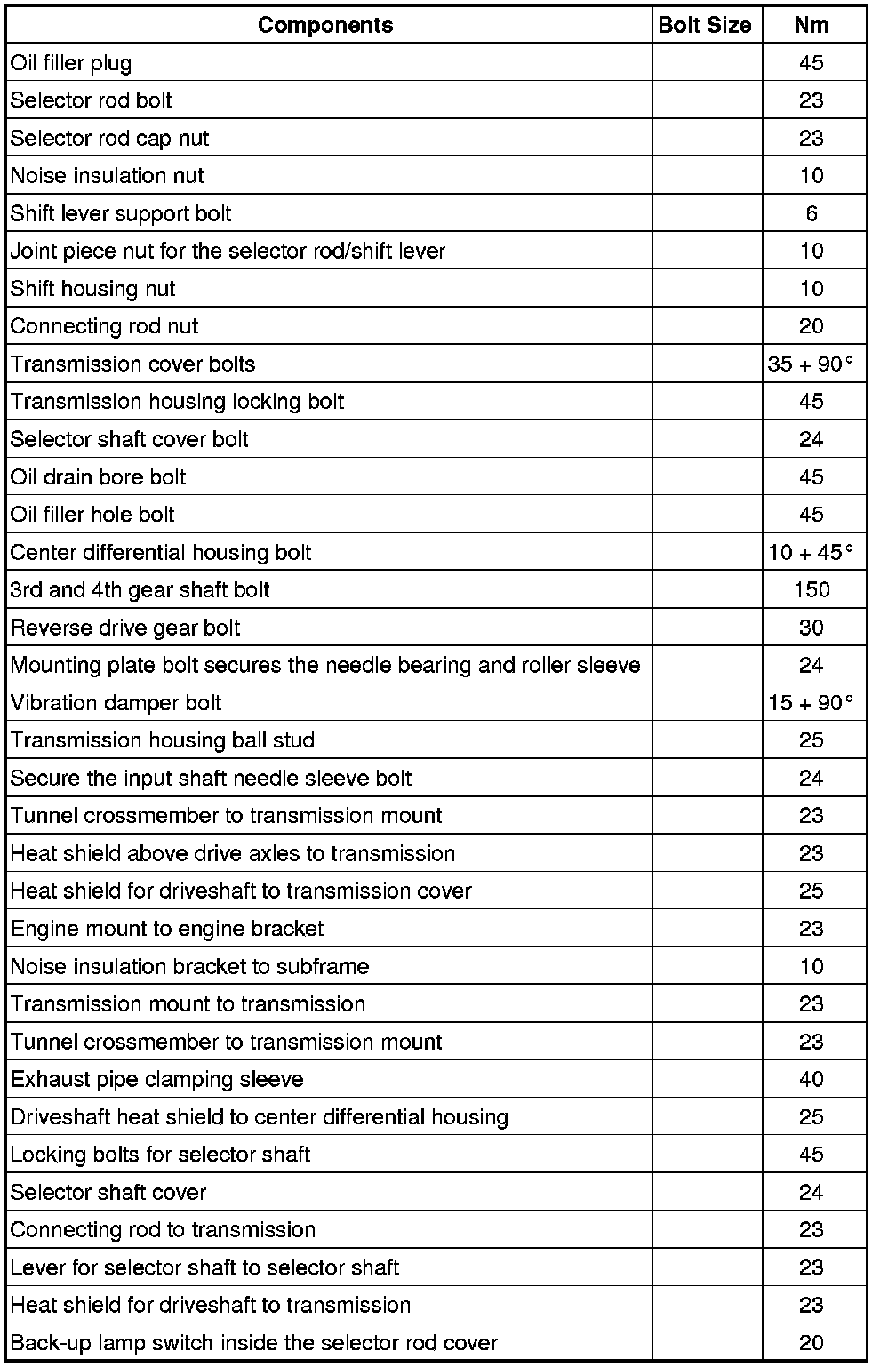

Fastener Tightening Specifications

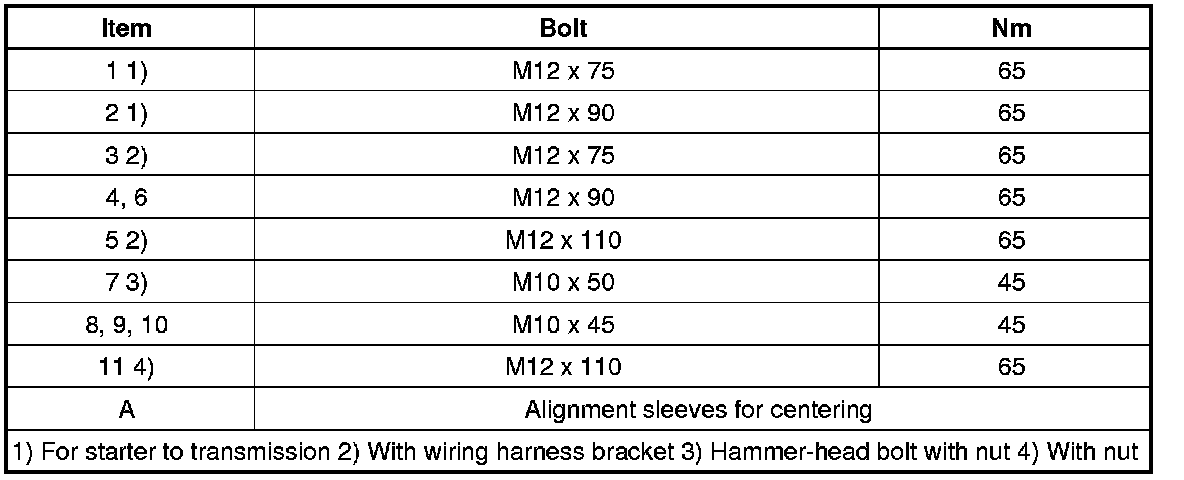

Mounting, 1.8L gasoline engine to transmission

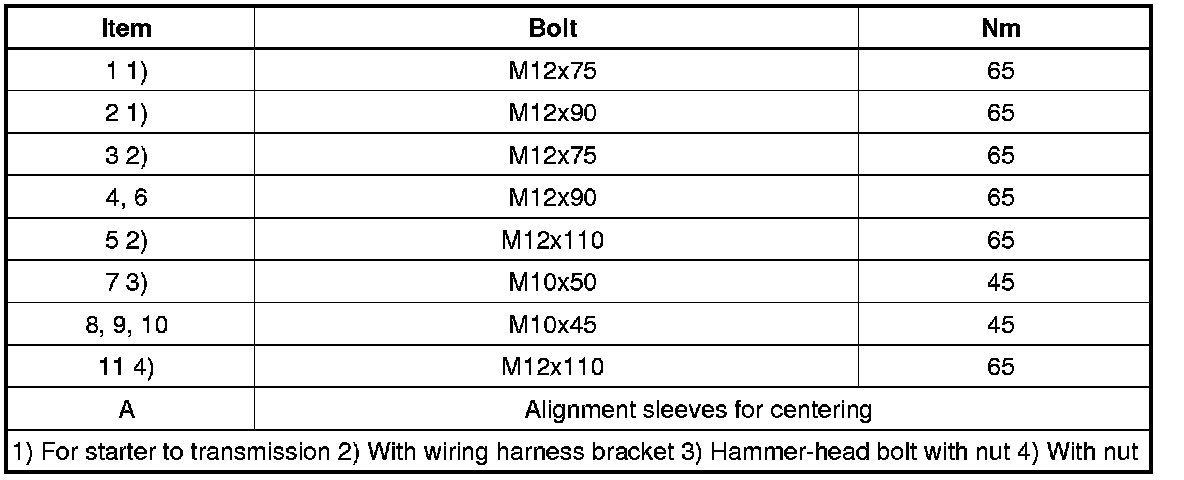

Mounting, 2.0L gasoline engine to transmission

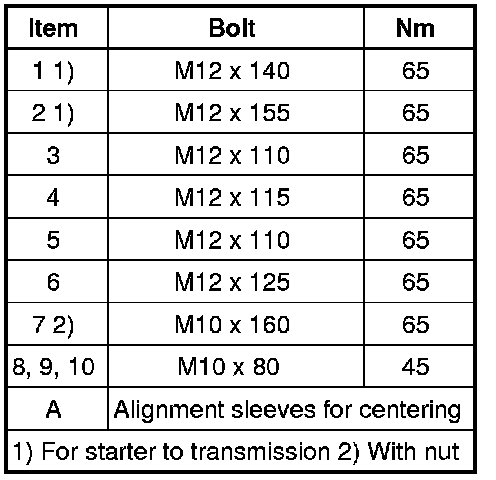

Mounting 6-cylinder 3.0L gasoline engine to transmission

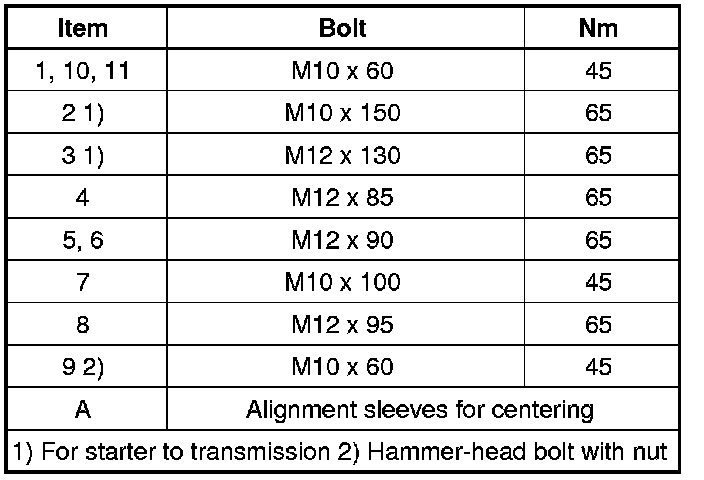

Mounting 6-cylinder 3.2L FSI gasoline engine to transmission
