Windshield Washer Switch: Service and Repair

Windshield Wiper/Washer Switch E22, Removing And Installing

Removing
- Remove steering column switch module.

CAUTION:
- Ensure steering is in straight ahead and centered prior to removing spiral spring.
- Position of spiral spring must not be changed once removed.

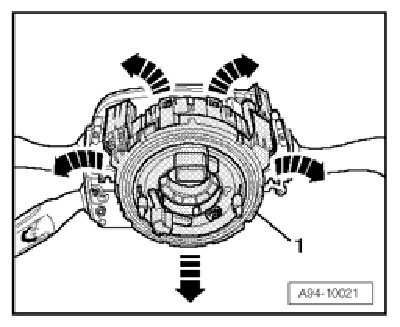

- Carefully release clip fasteners - arrows - and remove spiral spring - 1 - from steering column switch module.

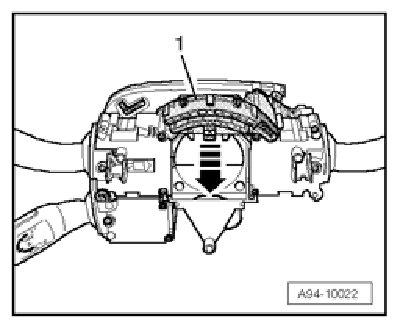

- Remove Steering Angle Sensor G85 - 1 - from Steering Column Electronic Systems Control Module J527 in direction of - arrow -.

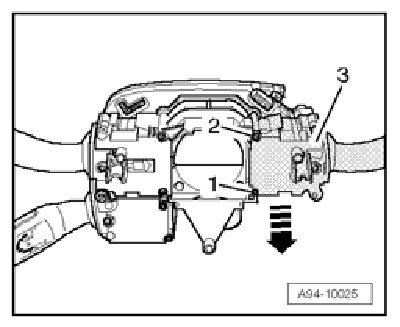

- Remove screws - 1 - and - 2 -.
- Remove Windshield Wiper/Washer Switch E22 - 3 - from steering column switch module - arrow -.

Installing
Further Install in reverse order of removal, noting the following:
- Ensure all fasteners and electrical connectors are properly connected and locked into place.
- Install steering column switch module.

Tightening torque

Component Nm
Windshield Wiper/Washer Switch 0.6 Nm
E22 to Steering Column Electronics
Systems Control Module J527
