Rear Suspension

Vehicle Level Sensor, with Automatic Headlight Vertical Aim Control

• General information. Refer to => [ Vehicle Level Sensor in Vehicles with Automatic Headlamp Vertical Aim Control ] Front Suspension.

• Vehicle level sensor is available as replacement part only complete with coupling rod and upper and lower retaining plates. To remove it completely, subframe must be removed.

• Replacing with subframe installed. Refer to => [ Vehicle Level Sensor ] Rear Suspension.

• Headlamp Range Control Module (J431). Refer to => Lighting and Horns Lighting and Horns

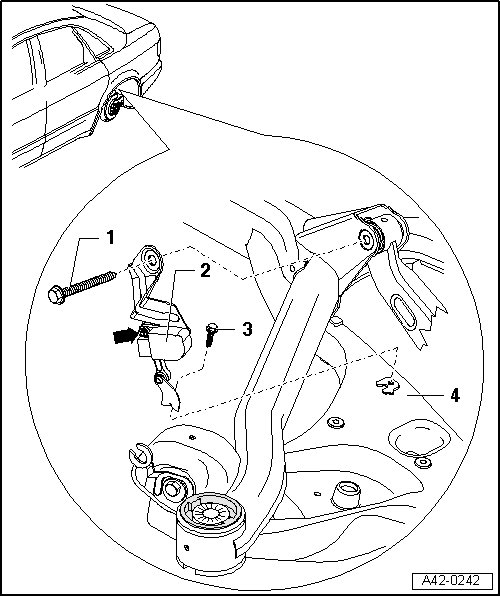

1 - Combi-bolt

• 85 Nm plus an additional 90° turn

• Always replace

2 - Left Rear Level Control System Sensor (G76) or Right Rear Level Control System Sensor (G77)

• Complete with components

• Lever - arrow - must face toward center of vehicle

• Replace in vehicle, refer to => [ Vehicle Level Sensor ] Rear Suspension

• After replacing, perform headlamp basic setting.

3 - Collar bolt

• 10 Nm

4 - Trapezoidal Control Arm
