Left Footwell Vent Temperature Sensor G261, Removing And Installing

Left Footwell Vent Temperature Sensor G261, Removing And Installing

- Remove operating and display module, Climatronic Control Module J255.

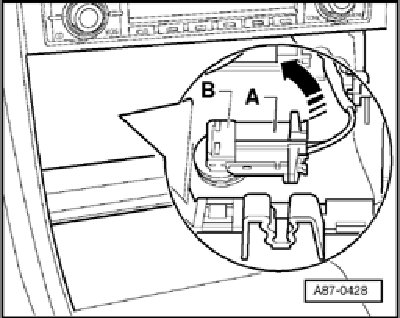

- Reach through opening for operating and display module, Climatronic Control Module J255 and disconnect connector - A -.
- Give Left Footwell Vent Temperature Sensor G261 - B - approx. 90 degrees turn in direction of arrow.
- Pull Left Footwell Vent Temperature Sensor G261 out of air conditioner.

NOTE: observe arrangement of connectors to both sensors (Left Footwell Vent Temperature Sensor G261 and Right Footwell Vent Temperature Sensor G262 to avoid interchange).
