Interior Switches

Driver's Interior Locking Switch

Removing

- Remove front door trim.

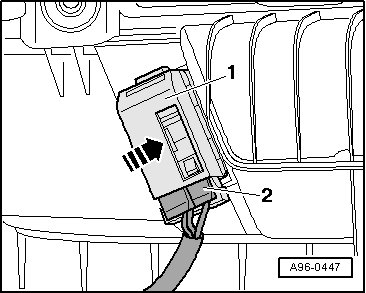

- Disconnect electrical connection - 2 -.

- Press switch - 1 - out of driver's door trim towards inside of vehicle - arrow -.





Installing

Install in reverse order of removal, noting the following:

- Install front door trim.
