Fuel Door Switch: Service and Repair

Remote Fuel Tank Flap Switch E204 And Rear Lid Remote Control Lock Switch E233, Removing And Installing







- Location: drivers door trim in storage compartment - detail -

Removing
- Remove drivers door trim.
- Disconnect electrical connections.

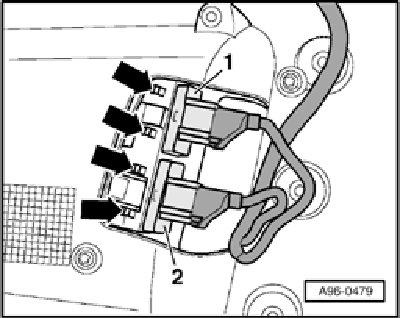

- Carefully release retaining hooks - arrows -.
- Press switches as applicable - 1 - and - 2 - towards rear out of trim.

Installing
Install in reverse order of removal, noting the following:
- Install drivers door trim.
