Function Selector Switch II

Function Selector Switch II, Removing And Installing

- Turn off all electrical components.
- Remove ignition key.

Removing







- Open cigarette lighter cover - 2 -.

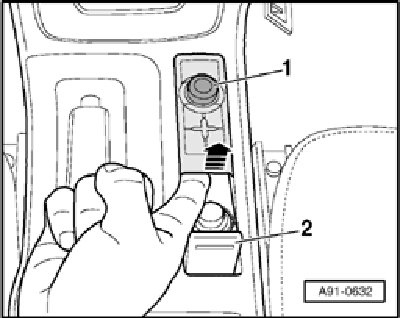

- Press Function Selector Switch II E272 - 1 - out of installation opening from below as shown in illustration.
- Disconnect connector at Function Selector Switch II E272.

Installing
- Install in reverse order.
