Trunk Light Bulb: Service and Repair

Luggage Compartment Light W3 - Bulb, Avant, Replacing

Removing

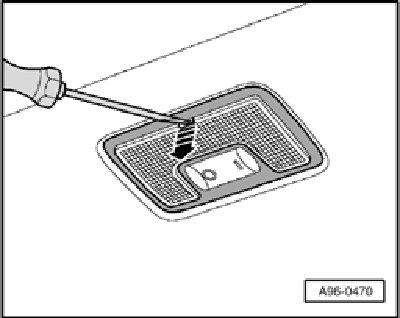

- Insert small screwdriver at recess in lens and carefully pry off lens - arrow -.
- Remove bulb (12 V, 6 W) from holder.

Installing
Install in reverse order of removal, noting the following:
- Press on lens until it engages.
