HID Headlamps

HID Lamp Control Module, from MY 2007

CAUTION!
Danger to life due to high voltage.

• Usage and safety information for gas discharge headlamps. Refer to => Lighting and Horns Lighting and Horns

Removing





- Remove headlamp, Refer to => [ HID Headlamp, MY 2007 ] .

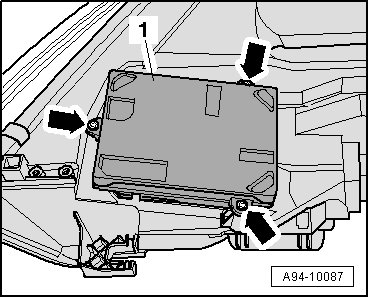

- Remove screws - arrows -.

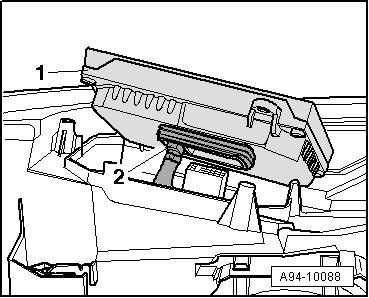

- Remove control module - 1 - from headlamp housing.

- Disconnect gas-discharge lamp adapter lead - 2 - at control module - 1 -.





Installing

Install in reverse order of removal, observing the following:

- Check seal between High-intensity Gas Discharge Lamp Control Module and headlamp housing.

- Install headlamp.
