Front Passengers MAP/Reading Light W13, Drivers MAP/Reading Light W19 - Bulbs, Replacing

Front Passengers Map/Reading Light W13, Drivers Map/Reading Light W19 - Bulbs, Replacing

Special tools, testers and auxiliary items required

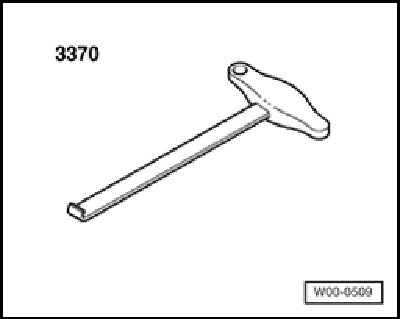

- Hook 3370

Removing







- Carefully remove interior lamp module trim using hook 3370 as illustrated.







- Remove bulb as applicable - 1 - or - 2 - (12 V, 5 W) from bulb holder.

Installing
Install in reverse order of removal, noting the following:
- Press on trim until it engages.
