Climatronic Control Module A/C Control Head Electrical Test
>>

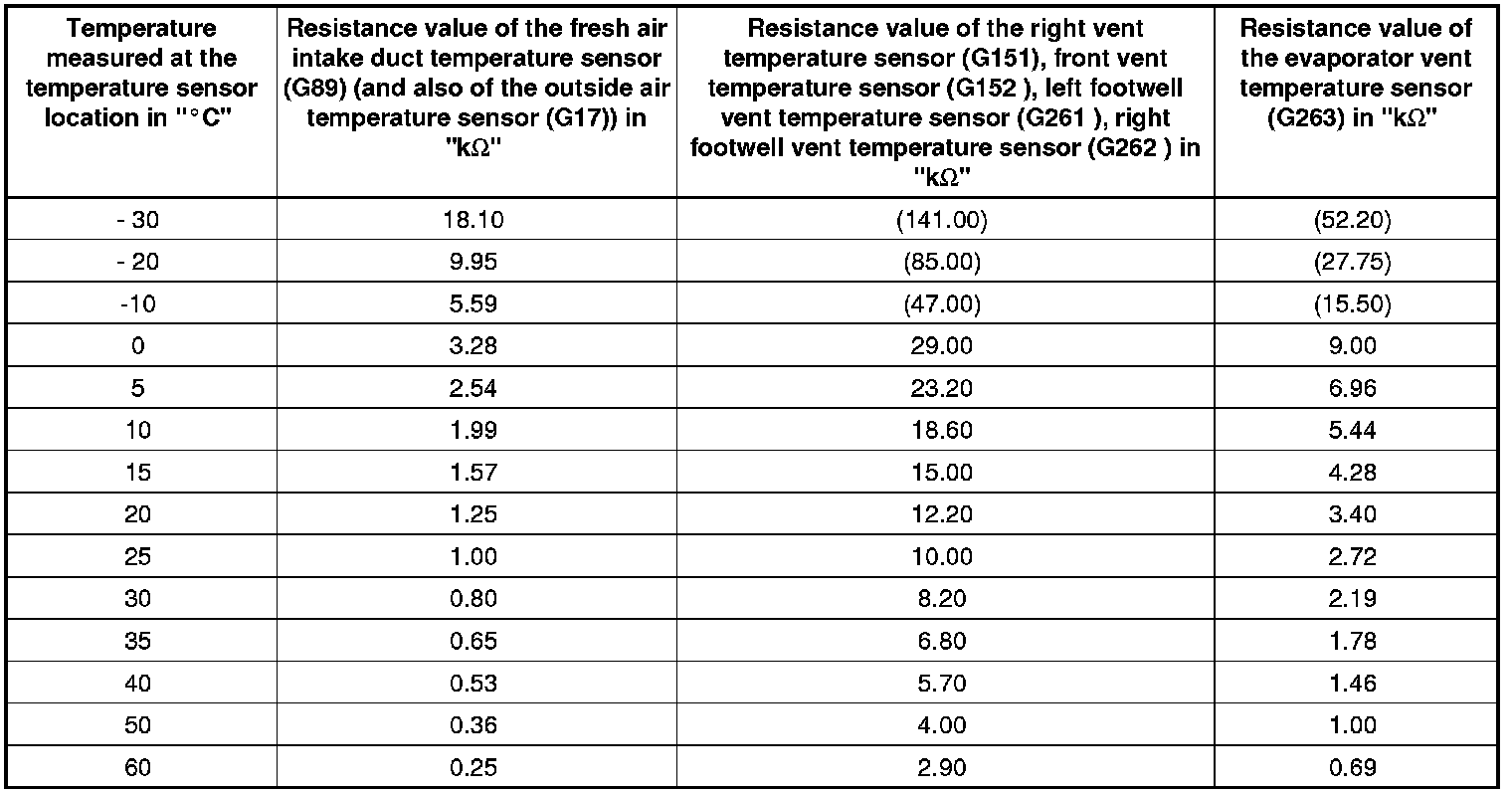

Temperature Sensor Temperature-Dependent Resistance Values
Temperature Sensor Temperature-Dependent Resistance Values
Temperature Sensor Temperature-Dependent Resistance Values
