Heating Elements and Air Guides, Removing And Installing

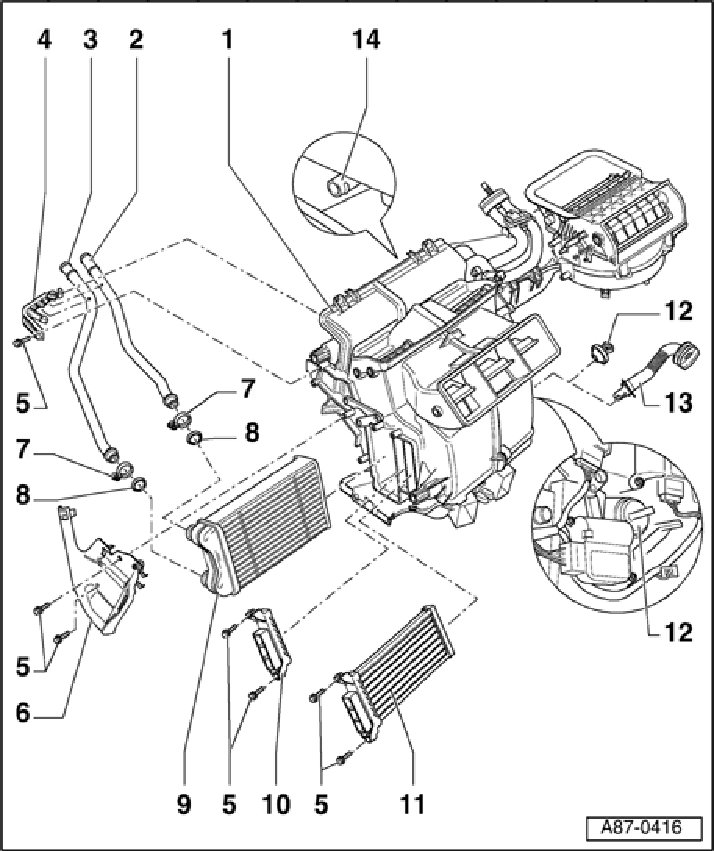

Heating Elements And Air Guides, Removing And Installing







1 - Heating and A/C unit
2 - Coolant line
- Return tube
3 - Coolant line
- Supply tube
4 - Bracket for coolant lines
5 - Bolt
6 - Cover for coolant lines
7 - Clamps
- Replace
- Ensure proper fit
- Bolt tightening torque 2.5 Nm
8 - O-ring seal
- Replace
9 - Heating core
10 - Cover
- Only installed on vehicles with air conditioner with opening
11 - Auxiliary Air Heater Heating Element Z35
- Not available in USA
12 - Sealing plug
- Only installed on vehicles without "glove compartment cooling" as optional extra
13 - Air guide to glove compartment
- Only installed on vehicles with "glove compartment cooling" as optional extra
14 - Connection for evaporator
- Leave the evaporator in the vehicle on removing the air conditioner
