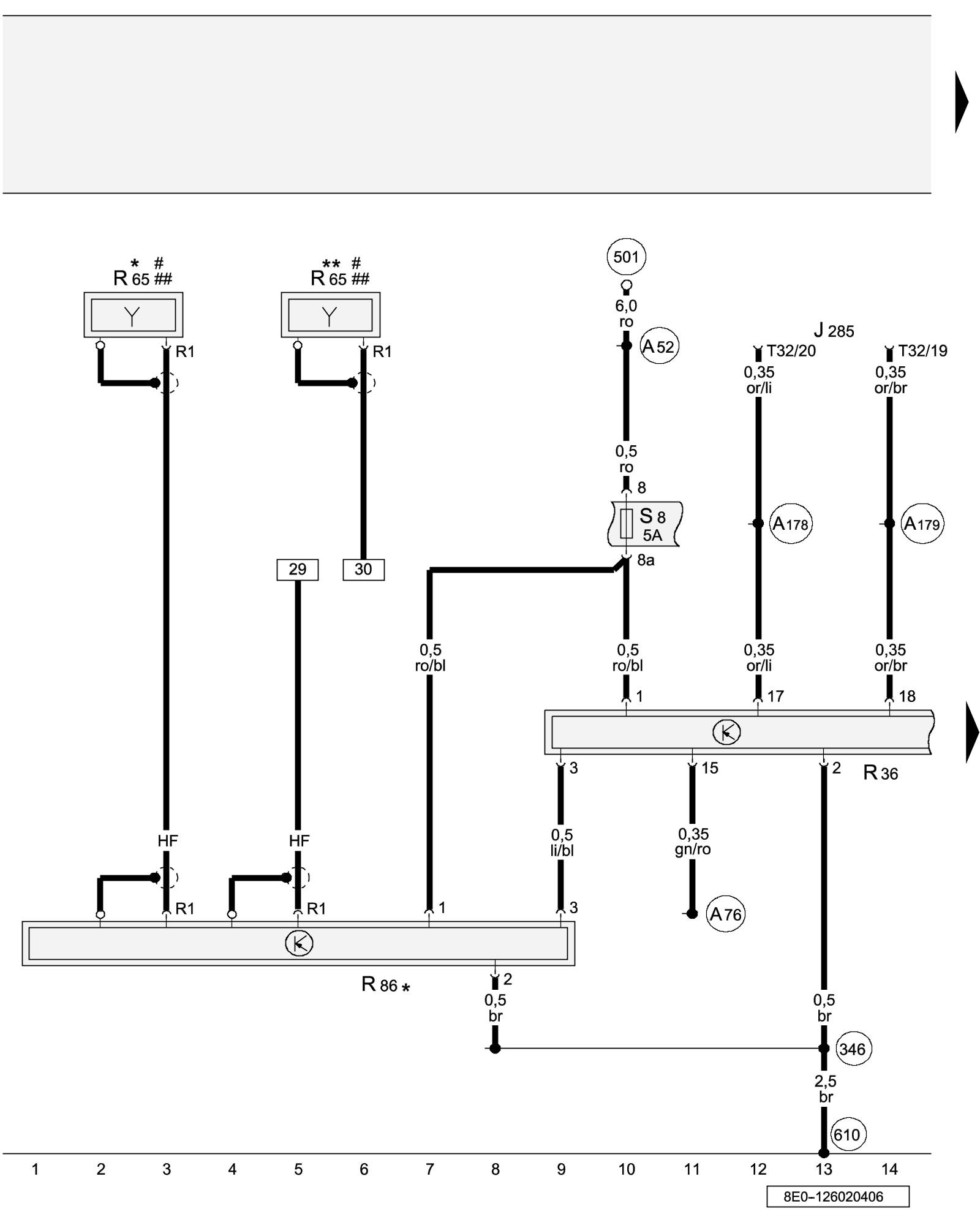

Diagram 126/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Antenna, Fuse





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module

R1 - Antenna Connection

R36 - Telephone Transceiver Telephone System - Sedan

R65 - Telephone Antenna Telephone System - Sedan

R86 - Telephone Amplifier Telephone System - Sedan

S8 - Fuse (on fuse/relay panel)

T32 - 32-Pin Connector, blue, on instrument panel insert

(346) - Audio Ground Connection (in instrument panel wiring harness)

(501) - Threaded Connection 2 - terminal 30 (on relay panel)

(610) - Ground Connection (Audio) (under center console, front) Component Locations Overview in Passenger Compartment

(A52) - Plus Connection 2 (30) (in instrument panel wiring harness)

(A76) - K-Diagnosis Wire Connection (in instrument panel wiring harness)

(A178) - Infotainment High-Bus Connection (in instrument panel wiring harness)

(A179) - Infotainment Low-Bus Connection (in instrument panel wiring harness)

* - with Telephone Amplifier only

** - without Telephone Amplifier only

# - Rear Window Antenna for Sedan

## - Roof Antenna for Avant

Next Diagram 126/3 (Tracks 15-28)
