ipod Baseplate

iPod Baseplate

NOTE: Unlisted connector terminals are not assigned.

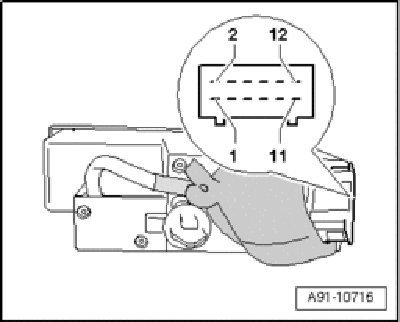

Black 12-pin multi-pin harness connector (T12a)
1 - Data out to Radio R / Navigation System with CD Drive Control Module J401
2 - CLK out to Radio R / Navigation System with CD Drive Control Module J401
3 - Terminal 31
4 - Data in from Radio R / Navigation System with CD Drive Control Module J401
6 - Permanent positive from Radio R/ Navigation System with CD Drive Control Module J401
7 - Right signal to Radio R / Navigation System with CD Drive Control Module J401 / Satellite Radio R146
8 - Positive switched from Radio R / Navigation System with CD Drive Control Module J401
9 - Signal ground from Radio R / Navigation System with CD Drive Control Module J401 / Satellite Radio R146
10 - Left signal to Radio R / Navigation System with CD Drive Control Module J401 / Satellite Radio R146
11 - TOC Check Control (not used)
12 - Terminal 58 (not used)
