Satellite Radio

Satellite Radio

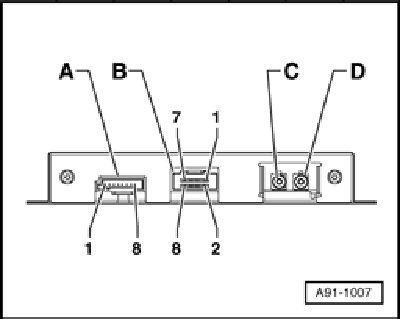

Connectors
A - 8-pin connector
B - 8-pin connector
C - Ter connection (brown) from Radio, Telephone, Navigation System Antenna R52 (up to 10/06)
D - Sat connection (green) from Radio, Telephone, Navigation System Antenna R52

NOTE: Unlisted connector terminals are not assigned.







A - multi-pin connector, 8-pin
1 - CAN-Bus High (Infotainment)
2 - CAN-Bus Low (Infotainment)
3 - Left signal from CD Changer R41 / iPod Baseplate R192
4 - Right signal from CD Changer R41 / iPod Baseplate R192
5 - Signal ground to Radio R / Navigation System with CD Drive Control Module J401
6 - Left signal to Radio R / Navigation System with CD Drive Control Module J401
7 - Right signal to Radio R / Navigation System with CD Drive Control Module J401
8 - Signal ground from CD Changer R41 / iPod Baseplate R192







B - Multi-pin connector, 8-pin
1 - Terminal 30
2 - Terminal 31
