Left Antenna Module, Radio Generation II+

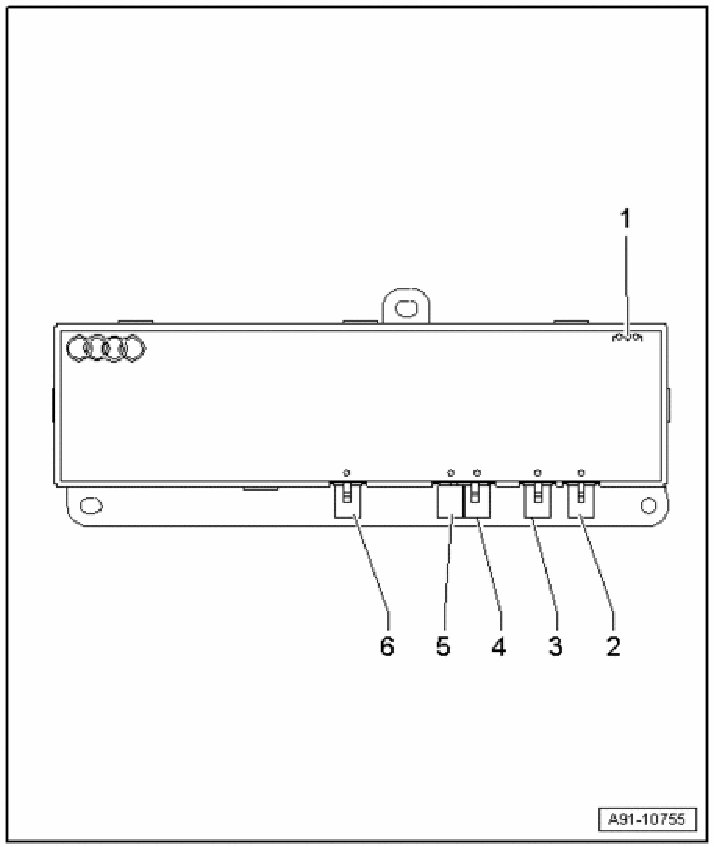

Left Antenna Module, Radio Generation II+, Avant







1 - Left window antennas connection
- 1CLS
- 2FM1/TS
- 3AM
2 - CLS connection (gray) to Comfort System Central Control Module J393
3 - TS connection (yellow) to Auxiliary Heater Radio Receiver R64
4 - AM/FM1 connection (yellow) to Radio R
5 - FM2 connection (yellow) to Radio R
6 - FM2 connection (brown) from rear window antennas
