Splash Guard: Service and Repair

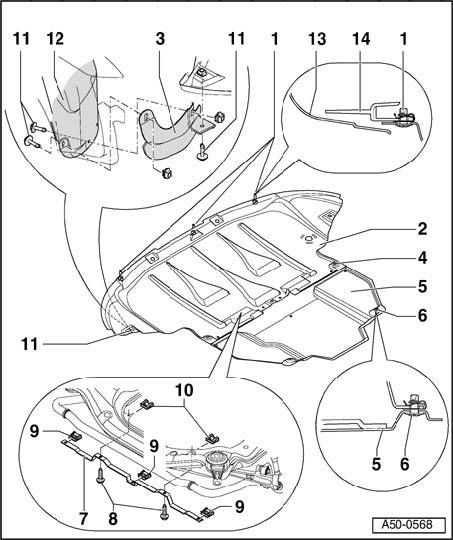

Noise Insulation Panel Assembly Overview







1 - Quick release screw
- Remove only these quick release screws for service position of lock carrier.
- 3 pieces

2 - Noise insulation, front
3 - Wheel spoiler
4 - Quick release screw
- 3 pieces
- If installed together with rear noise insulation, longer quick release screws must be used.

5 - Noise insulation panel rear
- Only installed for certain motor types

6 - Quick release screw
- Two pieces

7 - Noise insulation panel mount
- Marking (recess) must point to left vehicle side.

8 - Bolt
- Two pieces
- 7 Nm

9 - Speed nut
- 3 pieces

10 - Speed nut
- Two pieces

11 - Clamping pin
- Six pieces

12 - Wheelhousing liner
13 - Bumper
14 - Lock carrier with attachments
