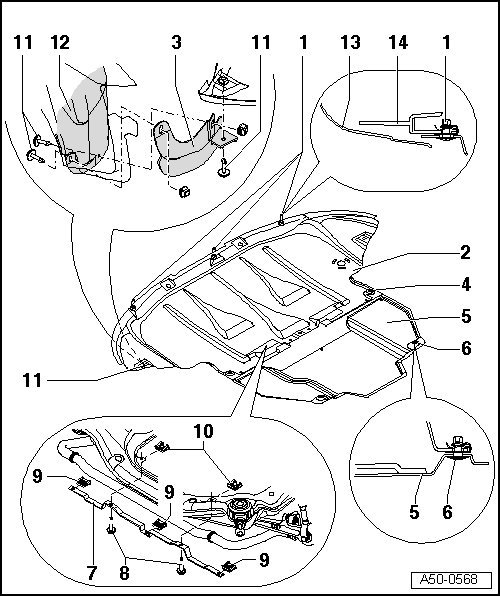

Noise Insulation Panel Assembly Overview

Noise Insulation Panel Assembly Overview





1 - Quick release screw

• Remove only these quick release screws for service position of lock carrier. Radiator Support Radiator Support

• 3 pieces

2 - Noise insulation, front

3 - Wheel spoiler

4 - Quick release screw

• 3 pieces

• If installed together with rear noise insulation, longer quick release screws must be used

5 - Noise insulation panel rear

• Only installed for certain motor types

6 - Quick release screw

• Two pieces

7 - Noise insulation panel mount

• Marking (recess) must point to left vehicle side.

8 - Bolt

• Two pieces

• 7 Nm

9 - Speed nut

• 3 pieces

10 - Speed nut

• Two pieces

11 - Clamping pin

• Six pieces

12 - Wheel housing liner

13 - Bumper

14 - Lock carrier with attachments
