Sound Proofing / Insulation: Locations

Expanded Foam Inserts

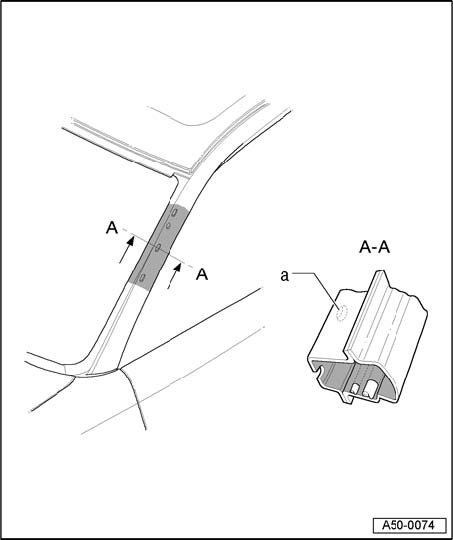

A-Pillar







a - Foam-filling hole

The following parts of the body are foam-filled for acoustic reasons:
A-pillar

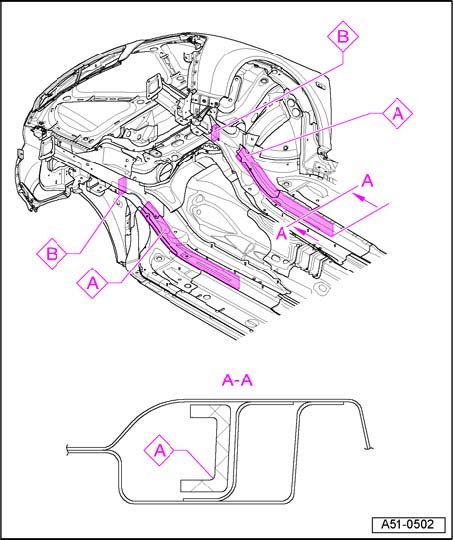

Front Longitudinal Member







A - Foam insert

Can be re-used. Do not make separating cut in this area. Glue in part with window adhesive.

B - Expanded foam insert

In front longitudinal member

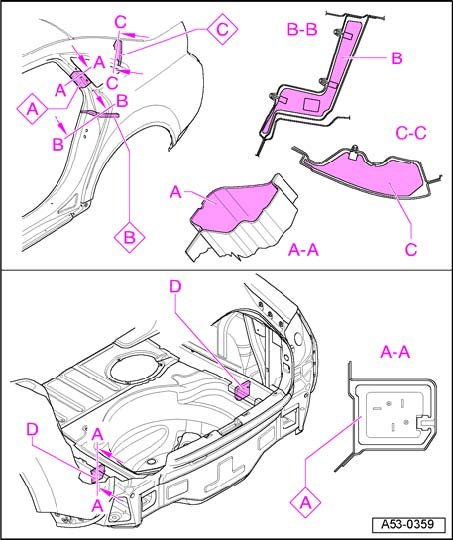

C-Pillar







A - Foam-filling hole

B - Expanded foam insert

Can be re-used; secure with two-part component foam.

C - Expanded foam insert

Can be re-used; secure with two-part component foam.

D - Dampening foam

In rear longitudinal member
