Cupholder, Removing and Installing

Cupholder, Removing and Installing

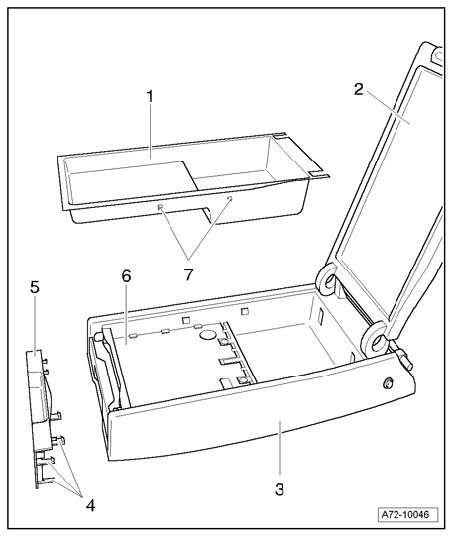

1 - Tray
2 - Cover
3 - Center armrest
4 - Retaining tabs
- Qty 9.

5 - Trim
6 - Cup holder

Removal
- Remove center armrest.
- Fold cover - 2 - up.
- Pry the trim - 5 - out all around at the retaining tabs - 4 - (Qty 9).
- Pry the tray - 1 - out of the retaining tabs - 7 - (Qty 6) beginning at the front and then at the left and right. Pull the tray forward and up to remove.
- Place a screwdriver at rear of cup holder - 6 - and pry it out as straight as possible.

Installing
- Installation is reverse of removal.

7 - Retaining tabs
- Qty 8.
