Front Recaro Seats Without Active Head Restraint, Assembly Overview

Front Recaro Seats without Active Head Restraint, Assembly Overview

Versions for specific countries: Vehicles from 06.06

Rest of world: Vehicles from 11.06

NOTE:
- With the introduction of backrests without the active head restraint system, the active head restraint system has been discontinued.
- The upper area of the backrest frame for backrests without the active head restraint system was changed.
- Inclination adjustment has been changed on headrests for backrest without active head restraint system.
- The rear side of the upholstery was adapted in the upper area of the changed backrest frame.
- With the introduction of backrests without the active head restraint system, the mount for four-way lumbar support in the upper area of the backrest frame has changed.
- Removal and installation of curvature and height adjustment motors for four-way lumbar support is similar to removal and installation on backrests with active head restraint system.
- The covers are identical for backrests with and without the active head restraint system.

CAUTION: For safety reasons, headrests from vehicles with the active head restraint system should not be used on seats without the active head restraint system.

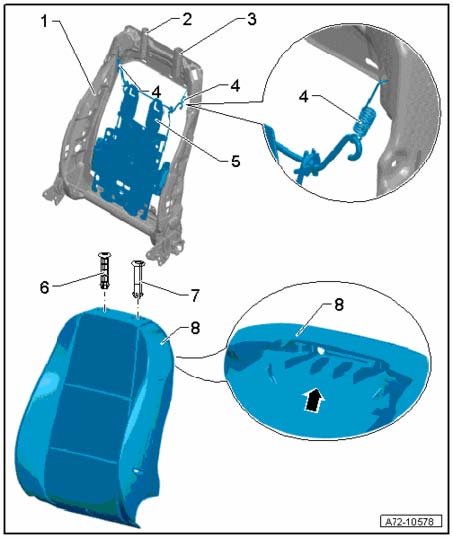

1 - Backrest frame
2 - Right headrest guide mount
- Welded with backrest frame

3 - Left headrest guide mount
- Welded with backrest frame

4 - Spring
- Qty. 2
- Engaged in backrest frame
- To upper four-way lumbar support mount

5 - four-way lumbar support
- Removing and installing

6 - Right headrest guide
- Removing and installing

7 - Left headrest guide
- Removing and installing

8 - Upholstery
- Rear side adapted to new backrest in upper area
- Removing and installing
