Lock Carrier With Attachments Assembly Overview

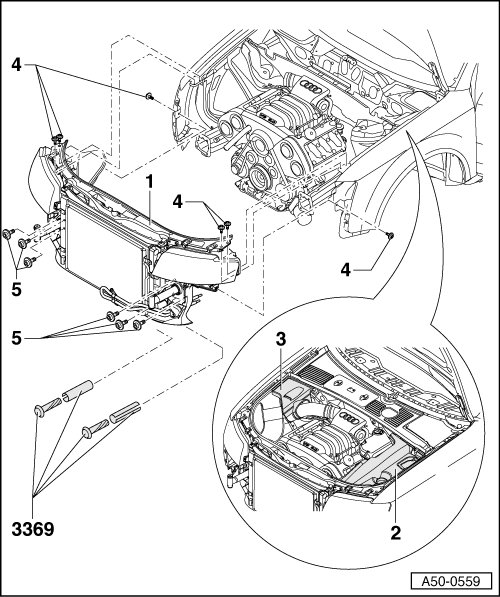

Lock Carrier with Attachments Assembly Overview





1 Lock carrier

• Removing => [ Lock Carrier with Attachments ] Lock Carrier With Attachments.

2 Left engine cover

• Model variations

3 Right engine cover

• Model variations

4 Screw

• 10 Nm

5 Screw

• 50 Nm
