Interior Rearview Mirror With Fixed Base, Removing and Installing

Interior Rearview Mirror With Fixed Base, Removing and Installing

Removal

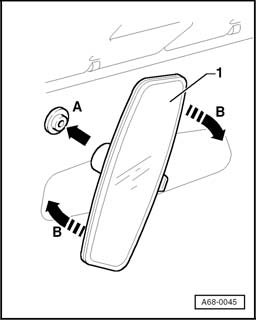

- When removing, rotate mirror - 1 - 60 to 90 degree - B arrows - until retaining spring disengages and remove mirror - arrow A -.

Installing

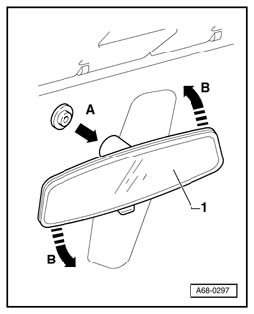

- Install mirror - 1 - at a 60 to 90 degree offset to installation position - arrow A - and turn - arrows B - until retaining spring engages.
