Automatic Day/Night Rearview Mirror With Compass, Removing and Installing

Automatic Day/Night Rearview Mirror With Compass, Removing and Installing

Removal

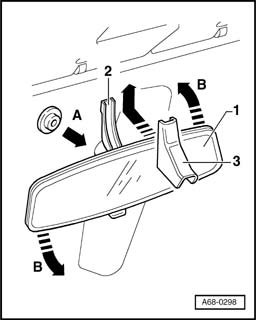

- Unclip cable channel cover - 3 -.
- Remove connector from retainer and disconnect.

NOTE: he cable channel - 2 - should not be used for rotating.

- When removing, rotate mirror - 1 - 60 to 90 degree - B arrows - until retaining spring disengages and remove mirror - arrow A -.

Installing:

NOTE: The cable channel - 2 - should not be used for rotating.

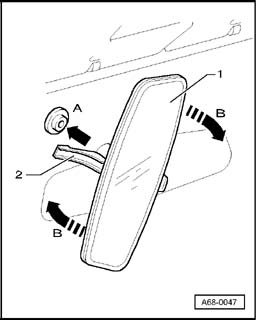

- Install mirror - 1 - at a 60 to 90 degree offset to installation position - arrow A - and turn - arrows B - until retaining spring engages.
