Steering Column Trim

Steering Column Trim

Special tools, testers and auxiliary items required

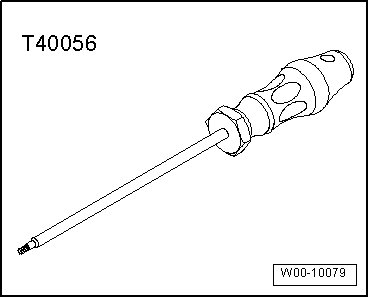

• TORX screwdriver T8 (T 40056)





Removing

- Remove the driver airbag unit:

• => [ Driver Airbag Unit, Standard Steering Wheel ] Driver Airbag, Servicing

• => [ Driver Airbag Unit, Sport Steering Wheel ] Driver Airbag, Servicing

• => [ Driver Airbag Unit, Multifunction Steering Wheel ] Driver Airbag, Servicing

• => [ Driver Airbag Unit, RS 4 ] Driver Airbag, Servicing

- Remove the steering wheel.

- Pull steering column all the way out and down.

- Remove TORX bolts - 3 - and - 5 - with TORX Screwdriver (T 40056) as well as hex socket head bolt - 4 -.





Tightening specification: 1 Nm

- Disconnect upper steering column switch trim - 2 - from lower trim - 1 - and remove both parts.

Installing

To install, perform the steps used in removal in reverse order. Observe the following when doing so:

- When installing, guide upper trim into lower trim hooks, press both parts together and bolt.
