Rear Ashtray

Rear Ashtray

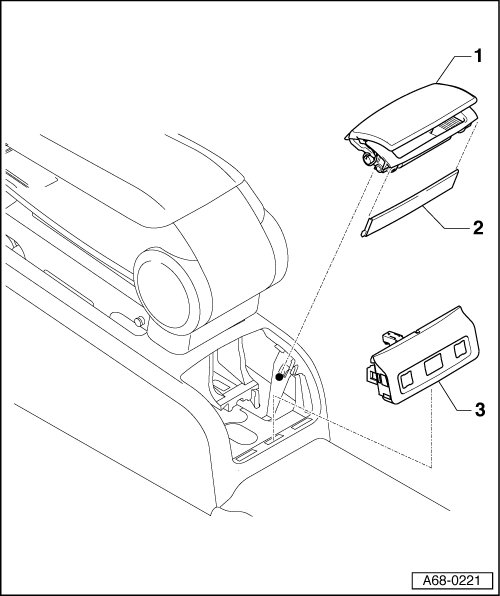

1 Rear Ashtray

• Removal:

- Unclip cover - 2 -.

- Disengage rear ashtray - 1 -.

- If present, unclip seat heating switch mount - 3 -.

• Installing:

To install, perform the steps used in removal in reverse order.

2 Cover

3 Switch Mount

• Removing and Installing, refer to => [ Switch Mount, Removing And Installing ]

Switch Mount, Removing And Installing





- Remove rear ashtray.

- Press catches - arrow A - on left and right to the outside and swivel switch mount to the rear - arrow B -.

- Disengage switch mount on bottom of rear center console.

- Disconnect electrical connectors.

- Unclip switch - 1 - and - 2 -.
