Center Console Telephone Receiver Cradle

Center Console Telephone Receiver Cradle

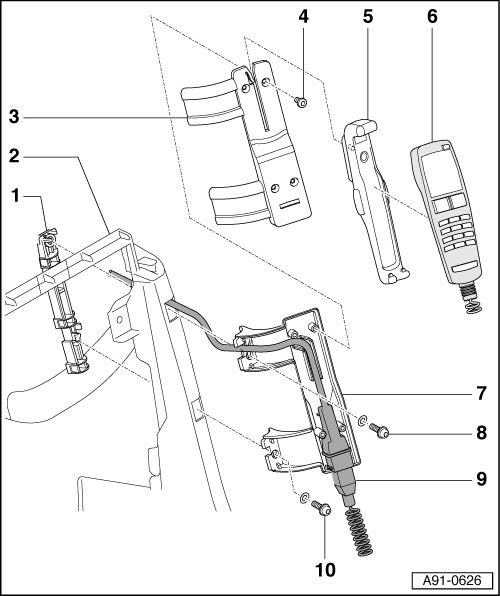

1 Threaded Hole Piece

• Clipped into center console from behind

2 Center Console

• With holes for base plate

• Drilling holes afterward => [ Telephone Receiver Cradle, Creating Openings on Center Console ] Service and Repair

3 Mounting Plate

• for receiver cradle

4 Screws (Qty. 4)

• Tightening specification 0.5 Nm

5 Receiver Cradle

6 Telephone Handset (R37)

7 Base Plate

8 Bolt

• Tightening specification 1.5 Nm

9 Connector

• Ensure connector is seated correctly.

10 Bolt

• Tightening specification 1.5 Nm
