Center Console Cellular Phone Bracket

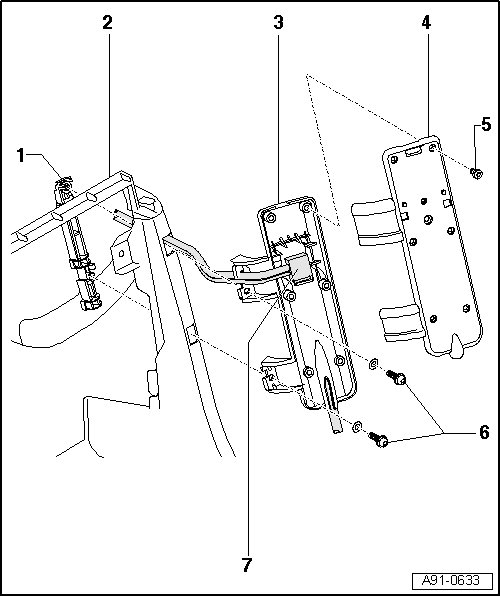

Center Console Cellular Phone Bracket





1 Threaded Hole Piece

• Clipped into center console from behind

2 Center Console

• With holes for base plate

• Drilling holes afterward. Refer to => [ Cellular Phone Bracket, Creating Openings on Center Console ] Service and Repair

3 Mounting Plate

• for cell phone receiver cradle

4 Base Plate

5 Screws (Qty. 6)

• Tightening specification 0.5 Nm.

6 Screws, (Qty. 2)

• Tightening specification 1.5 Nm.

7 Connector

• Ensure connector is seated correctly.
