Center Armrest Support Base

Center Armrest Support Base

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)





Removing

- Remove center armrest. Refer to => [ Center Armrest ] Center Armrest

- Remove center console:

• Center Console, Removing and Installing, USA, through October 2004, Refer to => [ Center Console, through October 2004 ]

• Center Console, Removing and Installing, USA, from November 2004, refer to => [ Center Console, from November 2004 ] Center Console, From November 2004.

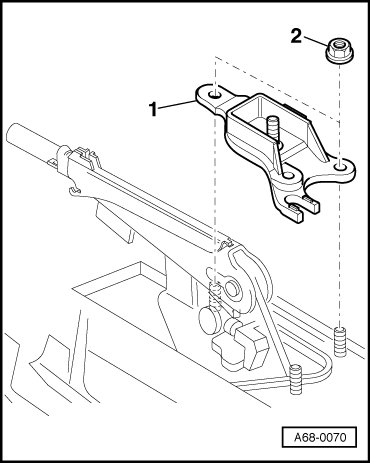

- Remove nut - 2 - (Qty. 2).





Tightening specification: 10 Nm.

- Remove support foot - 1 -.

Installing

To install, perform the steps used in removal in reverse order.
