Roof Panel Trim

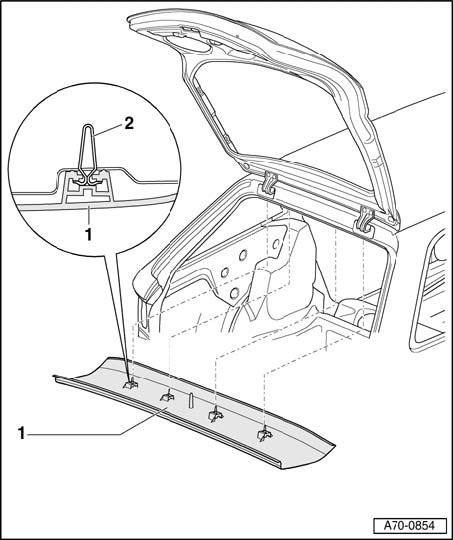

Roof Panel Trim, Removing and Installing







1 - Roof panel trim

Removal:
- Unclip four clips - 2 - on body.
- Remove roof end trim - 1 -.

Installing:
- Installation is reverse of removal. Observe the following when doing so:
- Rear lid rubber must be laid over roof end trim.

CAUTION: Ensure trim is held securely.

2 - Spring clips (Qty. 4)
