Cargo Tray, Removing and Installing

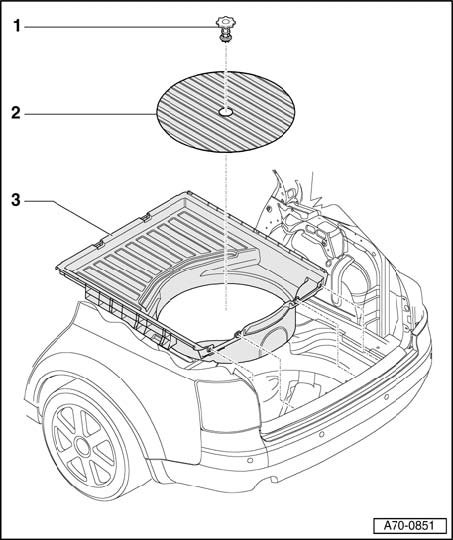

Cargo Tray, Removing and Installing







1 - Threaded pins
- tighten hand-screwed

2 - Cover
- for tool kit

3 - Cargo tray

Removal:
- Remove storage area floor.
- Remove rear cross panel trim.
- Remove right and left side trim in luggage compartment.
- Remove cargo tray.

Installing:
- Installation is reverse of removal.
