Base Bracket, Removing and Installing

Base Bracket, Removing and Installing

Special tools, testers and auxiliary items required







- Torque wrench V.A.G 1783

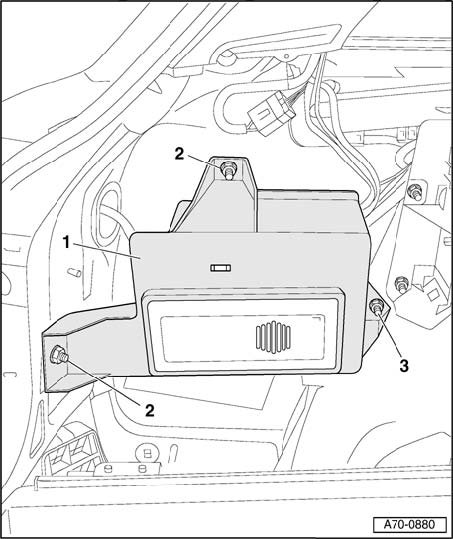

1 - Base bracket

Removal:
- Remove side trim luggage compartment on left side of vehicle.
- Remove four bolts - 2 - on base mount - 1 -.

Installing:
- Installation is reverse of removal.

2 - Nuts (2x)
- Tightening torque 5 Nm

3 - Nut
- Tightening torque 3 Nm
