Rear Power Outlet, Removing

Rear Power Outlet, Removing

Special tools, testers and auxiliary items required

• Special hook (3370)





Removing

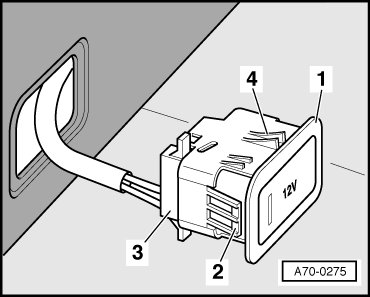

- Carefully remove rear power outlet - 1 - from side luggage compartment trim using special hook (3370).

• Note catches - 2 - and - 4 - when pulling out.

- Disconnect electrical connector - 3 -.

Installing

To install, perform the steps used in removal in reverse order.
