Switches In Center Console

Switches In Center Console, Removing And Installing

Special Tools, Testers And Auxiliary Items Required

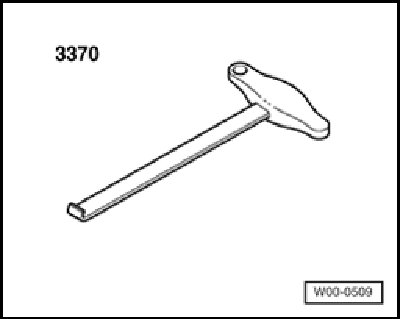

- Hook 3370

Removing
- Open glove compartment.

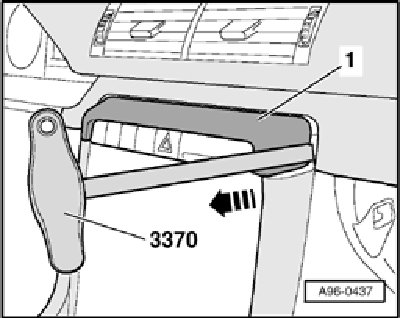

- Carefully pull off trim panel - 1 - to rear using hook 3370.

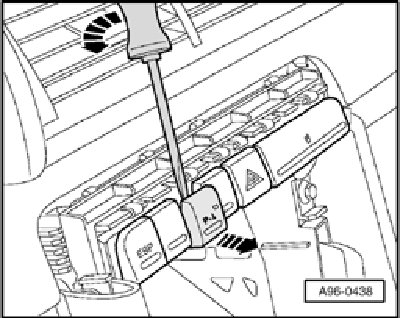

- Use flat screwdriver to carefully pry appropriate switch out of mounting - arrows -.
- Disconnect electrical connection.

Installing
Install in reverse order of removal, noting the following:
- Push switch into mounting in instrument panel and ensure it is properly engaged.
