Shift Cover and Shifter Boot, Removing and Installing

Shift Cover and Shifter Boot, Removing and Installing

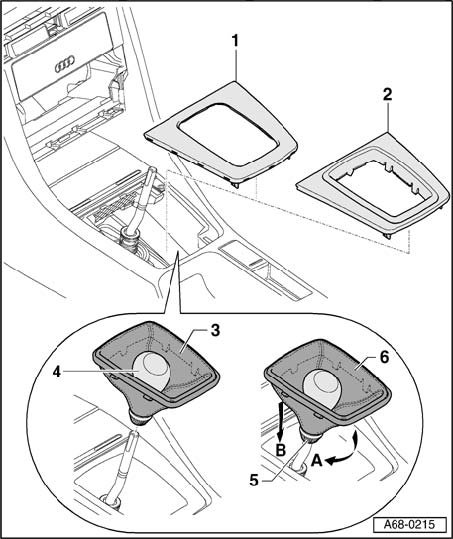

1 - Automatic transmission cover
- Pry off shift cover - 1 -.

2 - Manual transmission cover
- Pry off shift cover - 2 -.

3 - Selector lever boot
- Unclip securing frame - 6 -.
- Turn connecting part - 5 - to the right, until it disengages.
- Remove shift knob - 4 -.

4 - Shift knob
5 - Connecting part
6 - Securing frame
