Rear Lid Lock, Avant

Rear Lid Lock, Avant

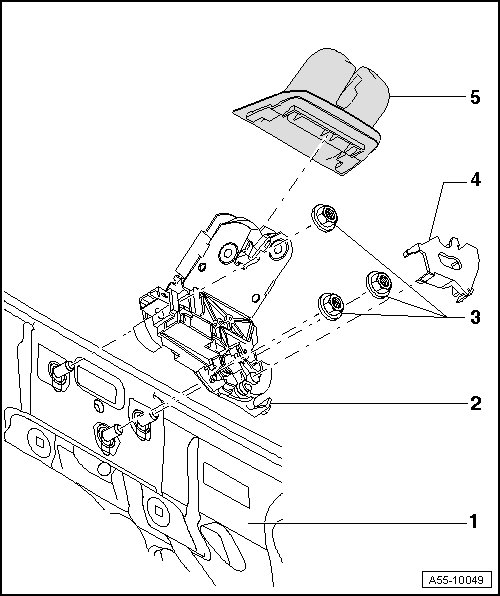

Assembly overview

As of Vehicle Identification Number (VIN) 400 001





1 Rear lid

2 Lid lock

• Removing

3 Hex nut

• 21 Nm

4 Cover

• Connected to lid lock as anti-theft device.

5 Cover for lid lock

• Slide on lid lock before installing rear lid trim.

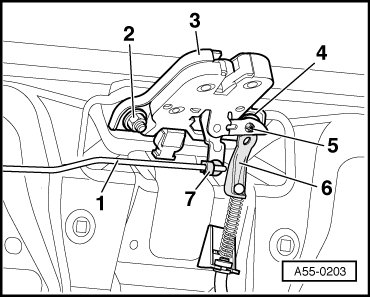

Removing lid lock

- Remove lower rear lid trim.

- Disengage actuating link - 6 -, for this purpose press expanding clip - 5 - from operating lever.





- Disengage operating rod - 1 - to actuator, for this purpose turn hinge arm - 7 - clockwise and remove operating rod.

- Remove nuts - 2 - and - 4 - and remove rear lid lock - 3 -.

- Tightening torque: 21 Nm

Installing

Installation is performed in the reverse order of removal.
