Rear Lid Trim, Removing and Installing

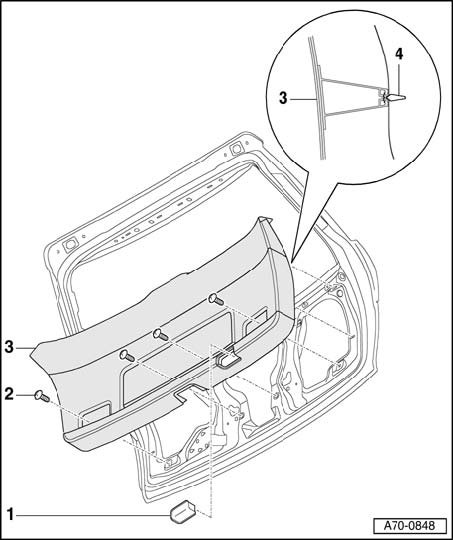

Lower Lid Trim, Removing and Installing

Special tools, testers and auxiliary items required







- Special hook 3370







1 - Luggage compartment light
- Removing and installing

2 - Screws (4x)
- Tightening torque 1.5 Nm

3 - Lower rear lid trim

Removal:
- Open warning triangle cover and remove triangle.
- Remove screws - 2 - (Qty. 4).
- Disengage locking mechanism on left and right at top of trim using special hook 3370.
- Carefully remove spring clips - 4 - for lower trim on left and right from rear lid.
- Reach between trim and rear lid and disengage four more spring clips - 4 -.
- Remove trim.

Installing:
- Installation is reverse of removal. Observe the following when doing so:
- Make sure that the trim engages into plate on lid lock.

CAUTION: Ensure trim is held securely.

4 - Spring clips (Qty. 6)







Lower trim, disengaging from retainer

- Disengage locking mechanism on left and right at top of trim using special hook 3370 - arrow -.

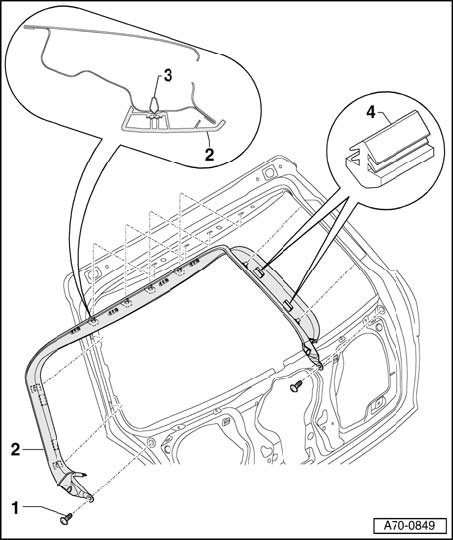

Upper Lid Trim, Removing and Installing







1 - Screws, (2x)
- Tightening torque 1.5 Nm

2 - Upper rear lid trim

Removal:
- Remove lower rear lid trim.
- Remove bolts - 1 - (2x).
- Press spring clamps on trim sides off of rear lid (Qty. 4).
- Remove spring clips - 3 - on upper trim from rear lid (4x).

Installing:
- Installation is reverse of removal. Observe the following when doing so:
- Before installing upper lid trim - 2 -, make sure rubber buffers - 4 - (8x) are installed.
- Guide upper rear lid trim behind rear lid side window frames.
- Clip in trim at top first and then at sides.

3 - Spring clips (Qty. 8)
4 - Rubber buffer (Qty. 8)
