Rear Lid Hinge, Avant

Rear Lid Hinge, Avant

Removing

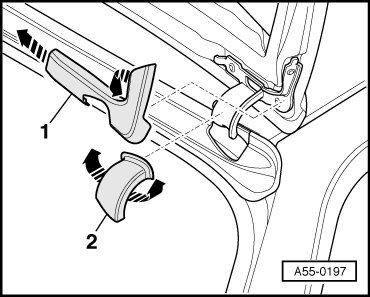

- Remove cover - 1 - for rear lid hinge and cable guide - 2 - from rear lid hinge - arrows -.





- Remove outer roof frame trim - 1 -, for this purpose lift trim from retaining clips - 2 - after unclipping and guide tabs - arrows - around the hinge.





- Remove D-pillar trim.

• To prevent damage to paint, support and secure rear lid.

- Remove nuts - arrows -.





- Remove bolts - arrows - at left and right.





- Remove hinge.

Installing

Installation is the reverse of removal, noting the following:

- When installing, tightening torque 21 Nm.

- Adjusting rear lid => [ Rear Lid, Adjusting, Avant ] Adjustments.
