Navigation Interface, Removing And Installing

Navigation Interface, Avant, Removing and Installing

- Turn off all electrical components.
- Remove ignition key.

Removing
- Remove luggage compartment left side trim.

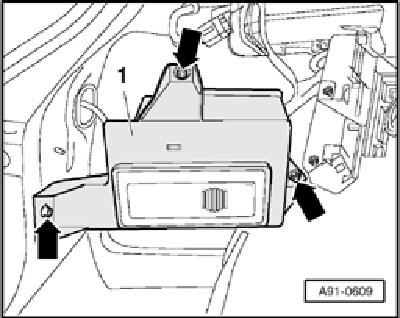

- Remove bolts - arrows - (14 Nm) and remove base mount - 1 -.

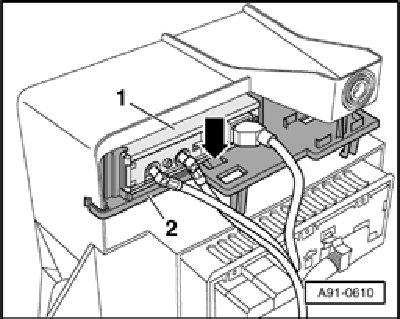

- Disconnect connectors at Navigation Interface R94 - 1 -.
- Release Navigation Interface R94 - 1 - at catch - arrow - and remove from mounting plate - 2 -.

Installing
- Install in reverse order.
