Navigation System, BNS 4.0, Overview

Navigation System, BNS 4.0, Overview

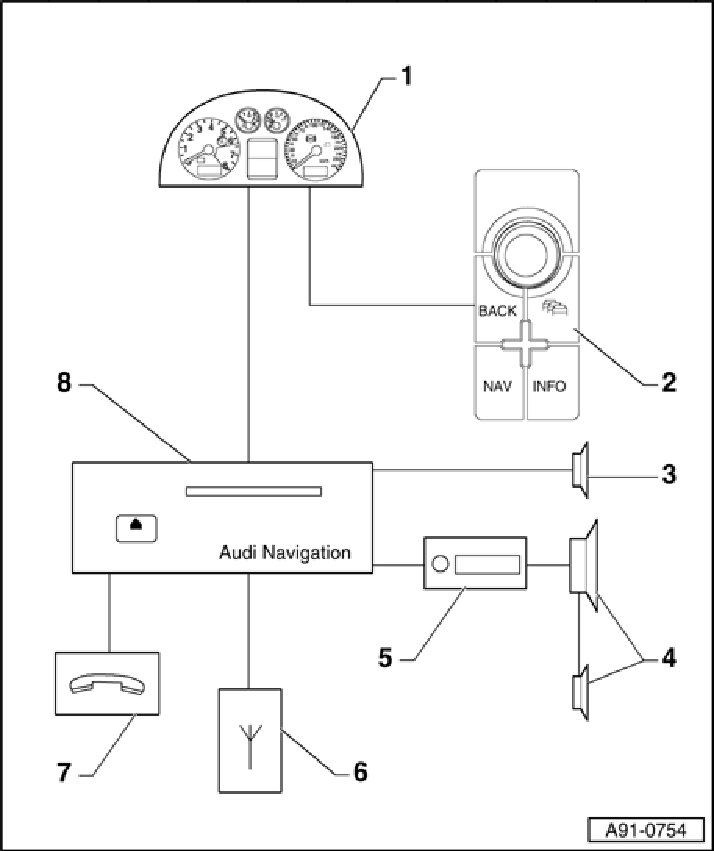

1 - Instrument cluster in instrument panel
2 - Function Selector Switch II E272 in lower center console
3 - Inside Loudspeaker R70 (vehicles without radio) in front center of instrument panel
4 - Sound system
5 - Radio R in upper center console
6 - Navigation System Antenna R50, sedan: behind roof end trim/Avant: in roof antenna
7 - Telephone Transceiver R36 in electronics box under right front seat
8 - Navigation System with CD Drive Control Module J401 behind luggage compartment left side trim
