RNS-E Navigation System Overview

Avant

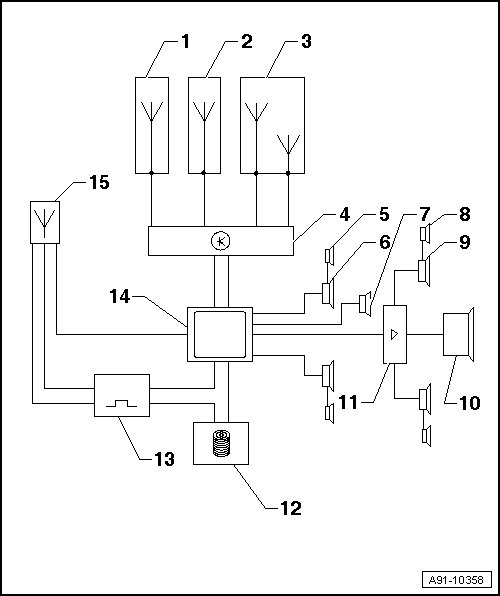

1 right rear FM3 window antennas

2 FM2 rear window antennas

3 left rear AM/FM1 window antennas

4 Left Antenna Module (R108) behind luggage compartment left side trim

5 Left Front Midrange Speaker (R26)/Right Front Midrange Speaker (R27) at top in front doors

6 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23) at bottom in front doors

7 Inside Loudspeaker (R70) in front center instrument panel

8 Left Rear Midrange Speaker (R34)/Right Rear Midrange Speaker (R35) at top in rear doors

9 Left Rear Bass Speaker (R15)/ Right Rear Bass Speaker (R17) at bottom in rear doors

10 Bass Loudspeaker (R100) behind luggage compartment right side trim

11 Amplifier (R12) behind luggage compartment right side trim

12 CD Changer (R41)/iPod Baseplate (R192) in glove compartment

13 Satellite Radio (R146) behind left luggage compartment side trim

14 Navigation System with CD Drive Control Module ( J401) in top of center console

15 Radio, Telephone, Navigation System Antenna ( R52) (Ter/Sat/GPS/GSM) roof antenna
