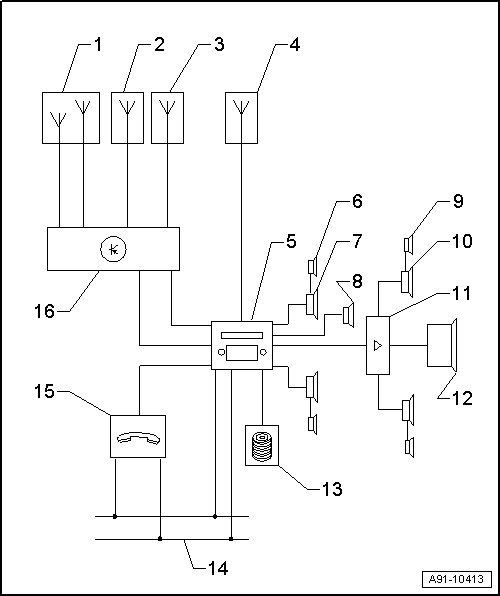

RNS Low Navigation System Overview
Avant
1 right rear FM3 window antennas
2 FM2 rear window antennas
3 left rear AM/FM1 window antennas
4 Antenna (R11) (GPS/GSM) roof antenna
5 Radio/Navigation Display Control Module (J503 ) in top of center console
6 Left Front Midrange Speaker (R26)/Right Front Midrange Speaker (R27) at top in front doors
7 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23) at bottom in front doors
8 Inside Loudspeaker (R70) in front center instrument panel
9 Left Rear Midrange Speaker (R34)/Right Rear Midrange Speaker (R35) at top in rear doors
10 Left Rear Bass Speaker (R15)/ Right Rear Bass Speaker (R17) at bottom in rear doors
11 Amplifier (R12) behind luggage compartment right side trim
12 Bass Loudspeaker (R100) behind luggage compartment right side trim
13 CD Changer (R41)/iPod Baseplate (R192) in glove compartment
14 CAN-BUS (Infotainment)
15 Telephone Transceiver (R36) in electronics box under right front seat
16 Left Antenna Module (R108) behind luggage compartment left side trim
