Navigation System II-D Overview
Avant

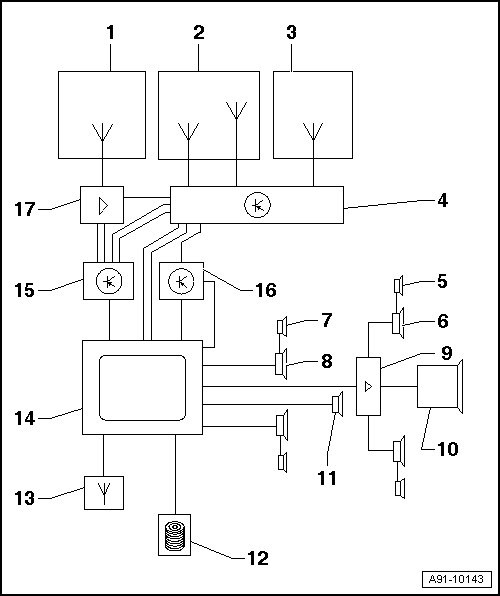

1 Right rear FM3/TV3/TV4 window antennas
2 left rear AM/FM1/TV1 window antennas
3 FM2/TV2 rear window antennas
4 Left Antenna Module (R108) behind luggage compartment left side trim
5 Left Rear Midrange Speaker (R34)/Right Rear Midrange Speaker (R35) at top in rear doors
6 Left Rear Bass Speaker (R15)/ Right Rear Bass Speaker (R17) at bottom in rear doors
7 Left Front Midrange Speaker (R26)/Right Front Midrange Speaker (R27) at top in front doors
8 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23) at bottom in front doors
9 Amplifier (R12) behind luggage compartment right side trim
10 Bass Loudspeaker (R100) behind luggage compartment right side trim
11 Inside Loudspeaker (R70) in front center instrument panel
12 CD Changer (R41) in glove compartment
13 Navigation System Antenna (R50) roof antenna
14 Operating Electronics, Navigation Control Module (J402) in top of center console
15 Navigation/TV Tuner (J415) behind luggage compartment left side trim
16 Navigation Interface (R94), behind luggage compartment left side trim
17 Right Antenna Module (R109) behind luggage compartment right side trim
